QWICKBUILD

REVOLUTIONISING HOW EXTERIOR SPACES ARE DESIGNED & BUILT

 QWICKBUILD IS A LIGHTWEIGHT, INTERLOCKING FRAMING
SYSTEM FOR CREATING EXTERIOR STRUCTURES


OUTDURE’s award winning aluminium deck framing system sets a new standard for structures in the building and construction industry.
QWICKBUILD offers an exclusive list of features and benefits superior to any other wood, steel or aluminium deck frame system available.
Ideal for simple or complex large scale commercial projects such as schools, retirement villages, apartments,
rooftop living spaces and resorts, through to DIY residential jobs.



QWICKBUILD  IDEAL AS A SUBFRAME TO SUPPORT:

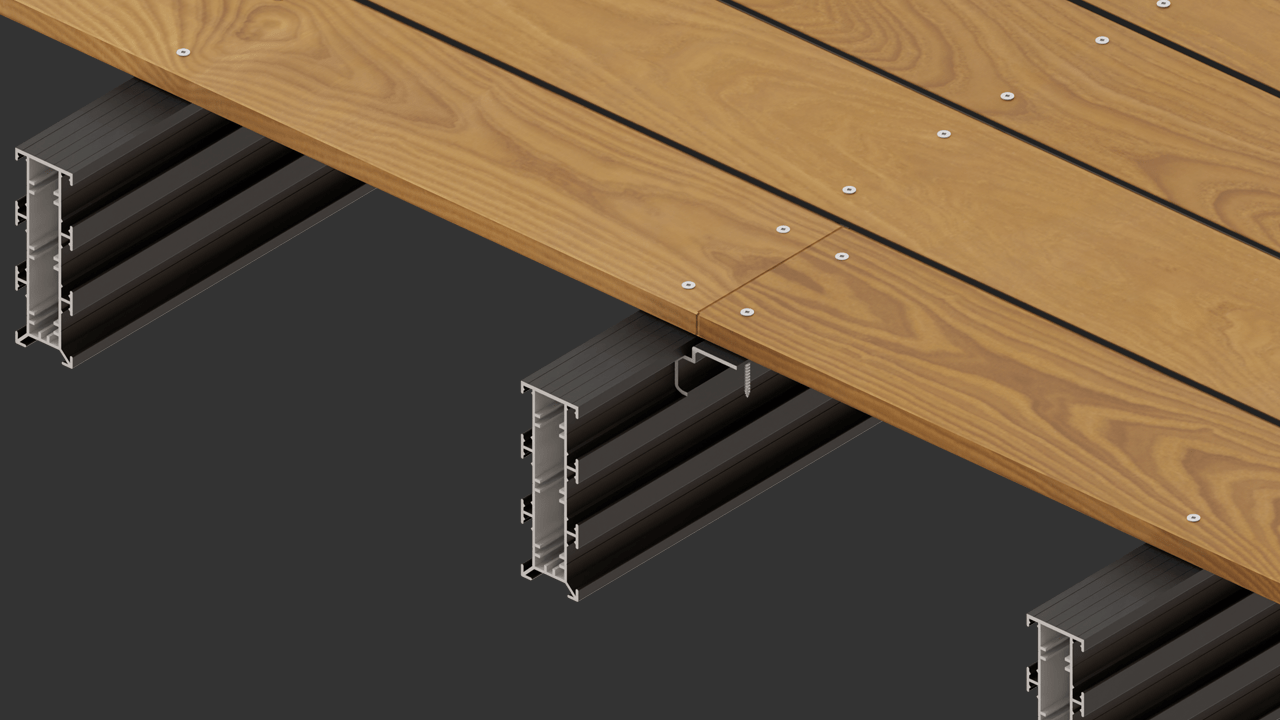

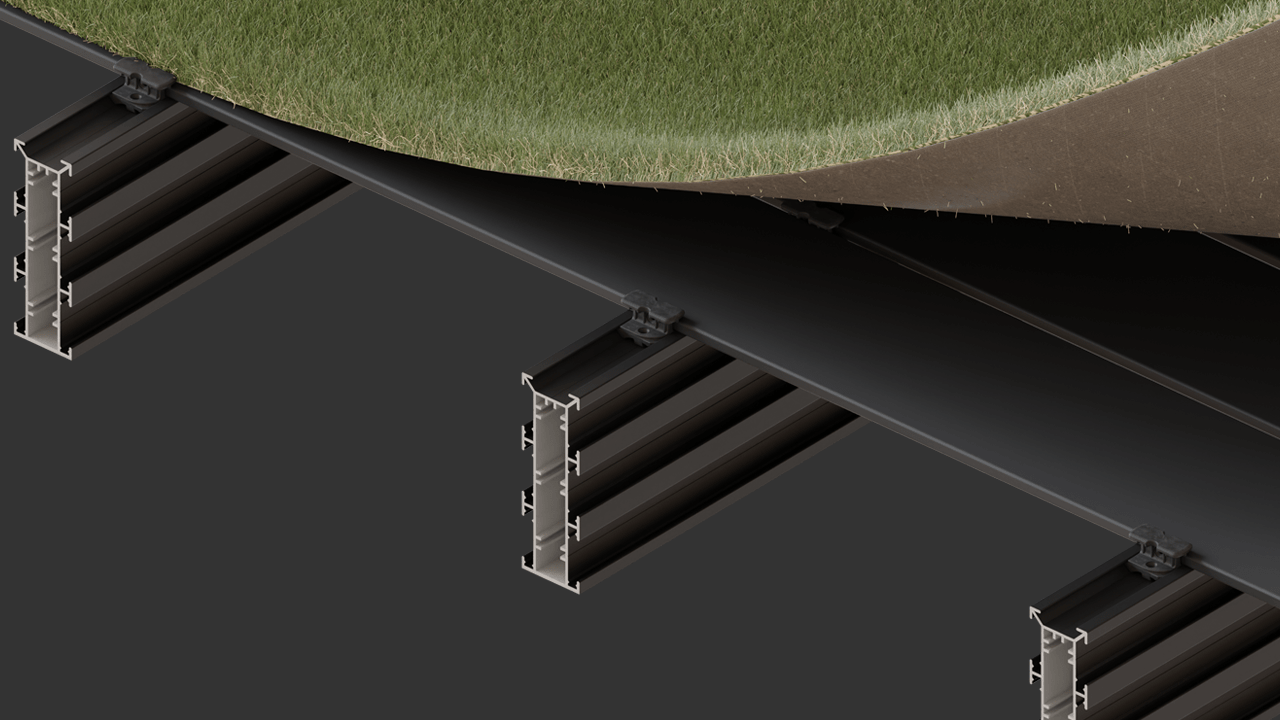

RESORTDECK / ECODECKING / HARDWOOD / STRUCTURAL TILES / TURF





UNIQUE APPLICATIONS & INSTALLATION CAPABILITIES



  • QWICKBUILD an be constructed simply with a few components or as sophisticated as the customer requires

  • Is suitable all decking applications:
    from DIY residential to large scale commercial projects

  • Can be configured with many joist/bearer/jack/pier combinations for any structural requirement

  • Is suitable for creating decking substrates over:

    • -  Concrete, tiles or pavers

    • -  Waterproof membrane,

    • -  Soil, grass







Enables the construction of deck structures:

  • -  That are extremely low height (as low as 71mm)

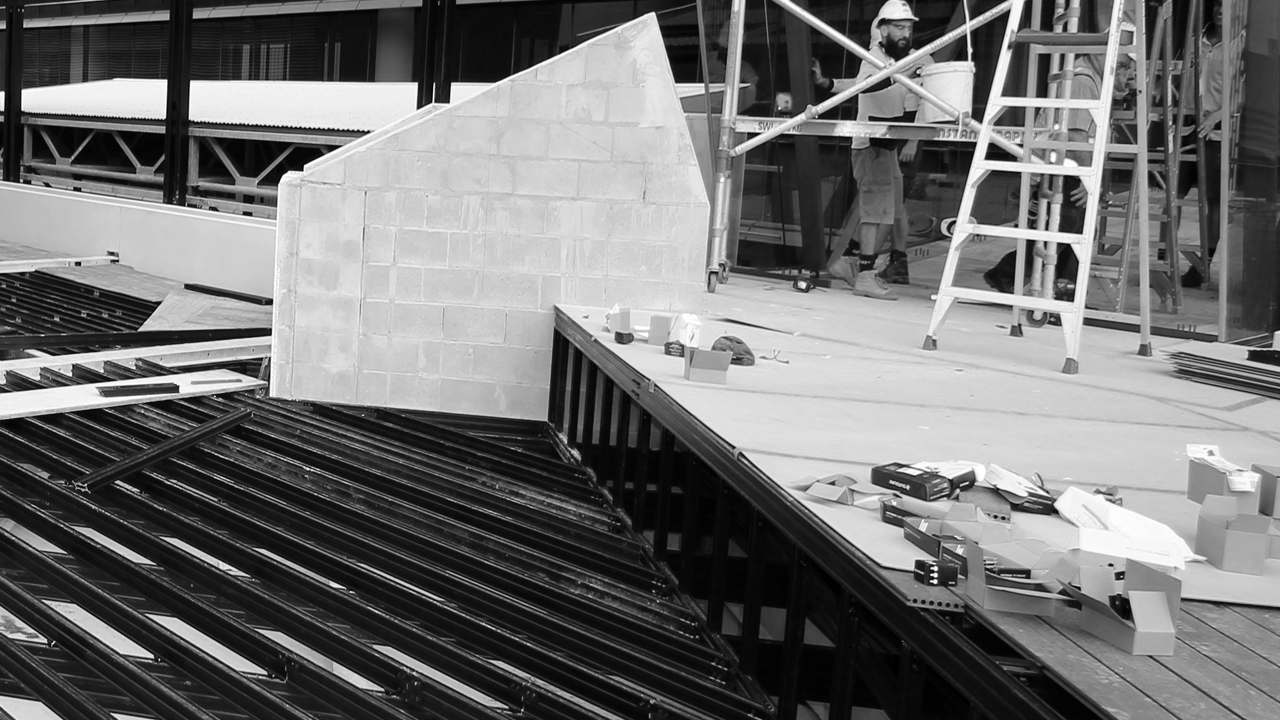

  • -  Of complexity, including: stairs, seats, screens,

    bracing elements for applications requiring railings

  • -  To support breaker board layouts

  • -  To support picture frame board layouts

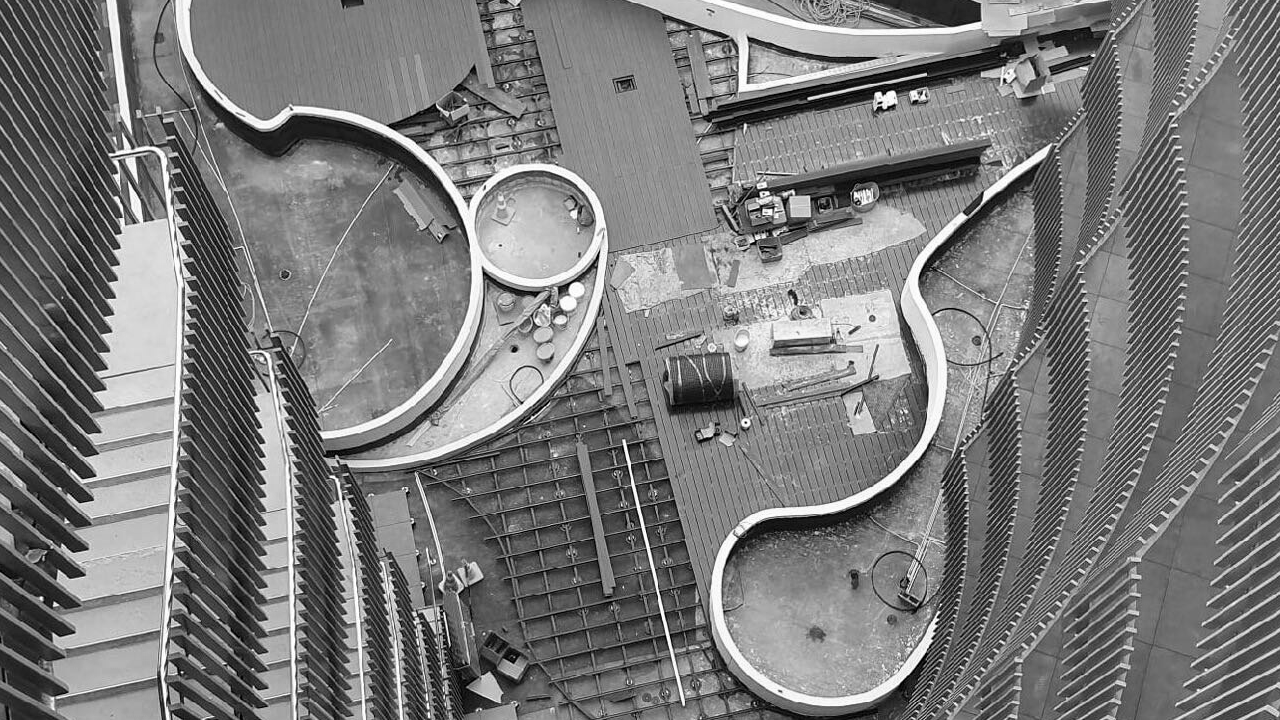

  • -  That are curved

  • -  That are freestanding with minimal bracing elements

    Fast, efficient installation, eliminates up to 50% of piers required

- Joists span min 1.3m to max 5.0m





AN OVERVIEW

QWICKBUILD has been designed as a cohesive inter-locking system to complement OUTDURE’s decking ranges
RESORTDECK & ECODECKING but can also be used a sub-frame for traditional hardwoods/structural tiles/turf/or a combination.
Initially designed as a solution to previously problematic deck/tile installations over waterproof membranes,
the systems benefits extend to many more applications.



WHAT IS QWICKBUILD MADE OF?

Made from corrosion-resistant components: marine-grade, anodized, structural aluminium frames, plus stainless & GRP nylon brackets
& clips, resulting in superior durability, span capabilities & stability to traditional materials for the equivalent installed cost.
Pre-fabricated frames are delivered to site to custom measurements or as loose components to be assembled.

HIGHLY DURABLE, STABLE MATERIALS + FAST INSTALL
= EQUIVALENT COST OF TRADITIONAL TIMBER FRAMES



Pricing >>

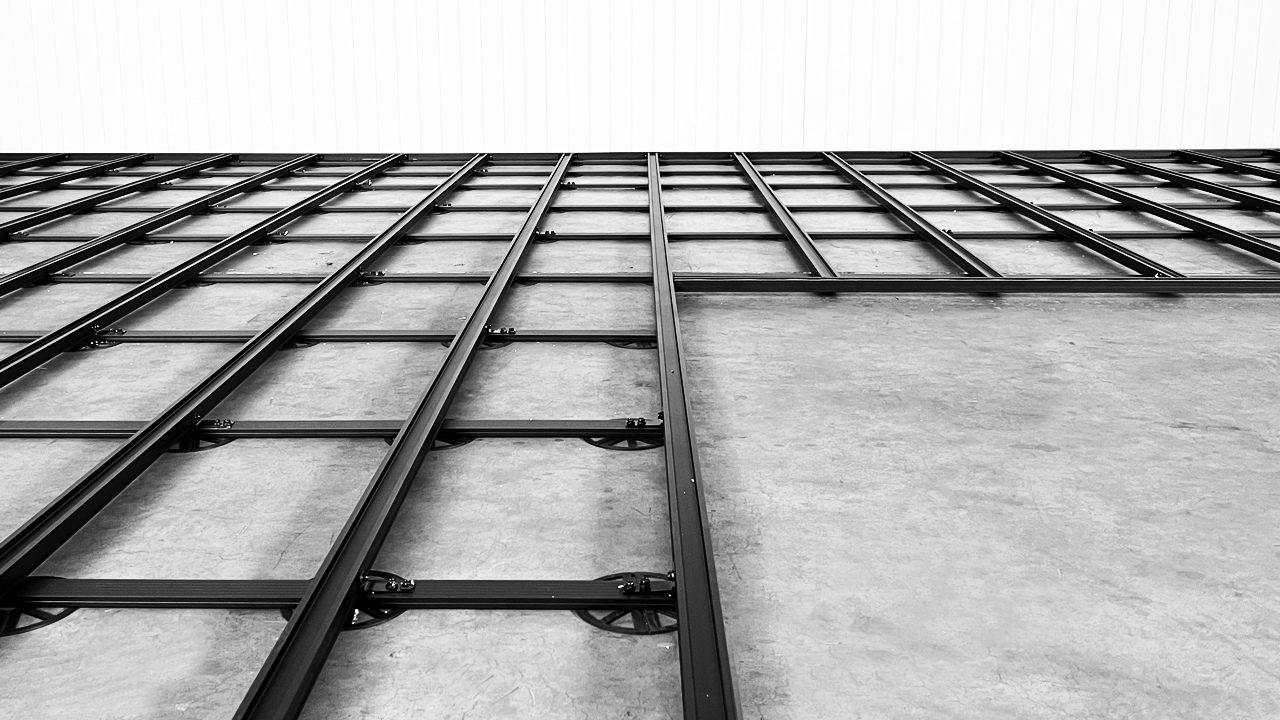

QWICKBUILD CAN BE USED OVER
CONCRETE / WATERPROOF MEMBRANE / SOIL

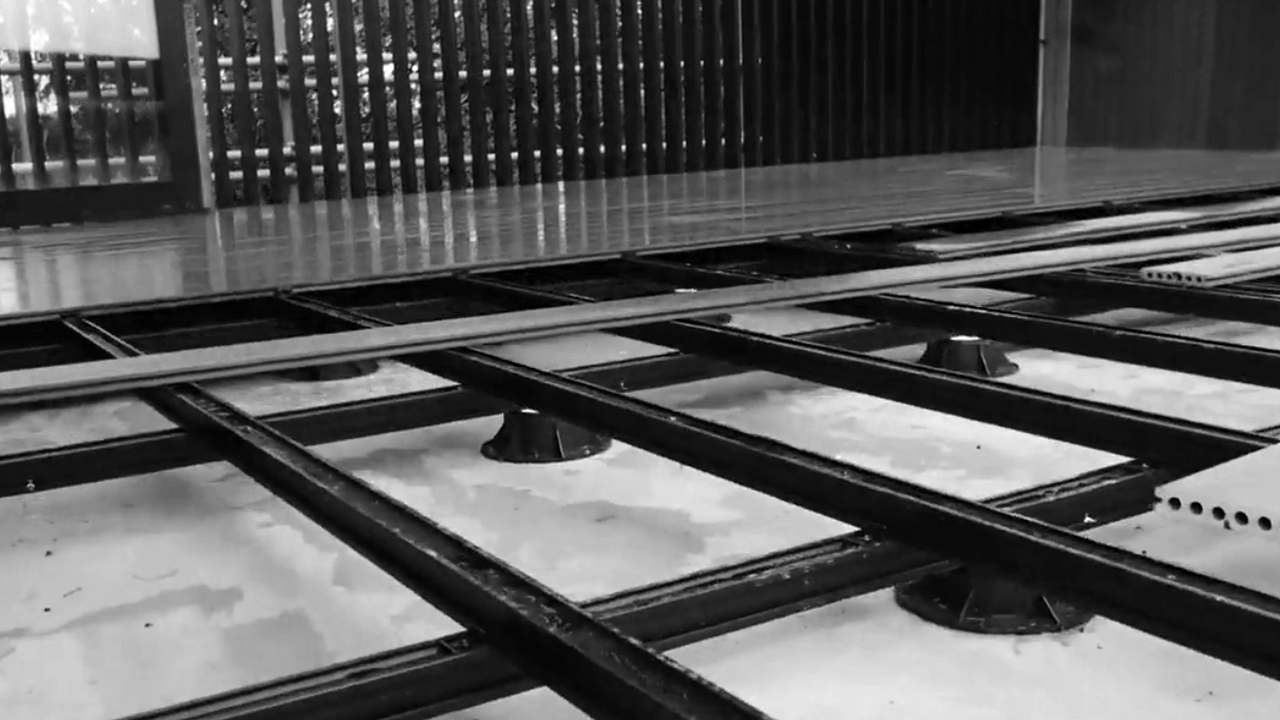

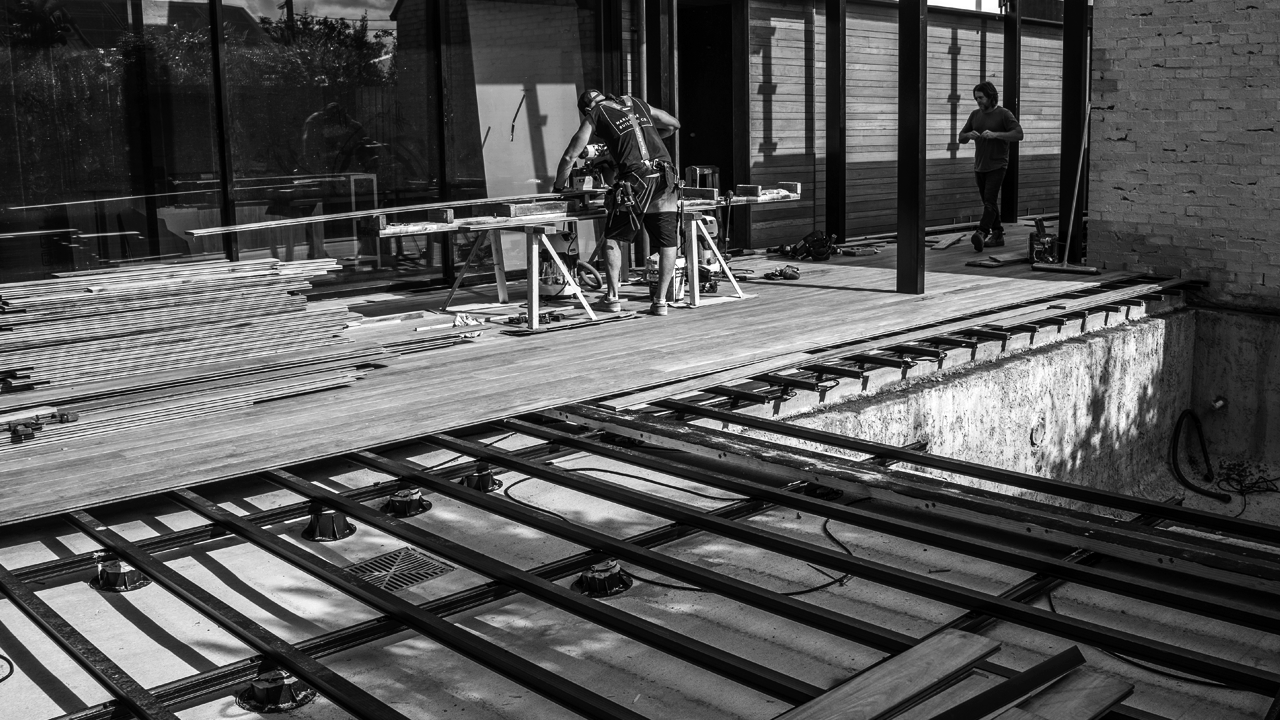

INSTALLATION & ASSEMBLY

QWICKBUILD is a Council compliant solution for decks over membranes with the added benefit of enabling a perfectly level indoor/ outdoor flow
as the frames are ultra-low height (73mm total height). The addtion of QWICKGRATES allowis access & ventilation, maintaining the membranes integrity.

Installation & assembly is fast & efficient, eliminating up to 50% of piles. The frames are delivered to site prefabricated to exact measurements, or as a kit-set & an be configured with many joist/bearer/jack/pier combinations for any structural requirement.

Enables the construction of deck structures that are extremely low height (as low as 71mm).
Structures that are of complexity, including: stairs, seats, screens, bracing elements for applications requiring railings. A solution to support breaker board & picture frame board layouts.
Structures that are curved & are freestanding with minimal bracing elements.



SOLUTIONS FOR INSTALLATIONS FOR:

CANTILEVERED DECKS / DECK WITH RAILINGS / AROUND POOLS / SEATING & STAIRS /
OVER SOIL / OVER CONCRETE / LOW HEIGHT TO GROUND / HIGH ABOVE GROUND



SYSTEM COMPONENTS:

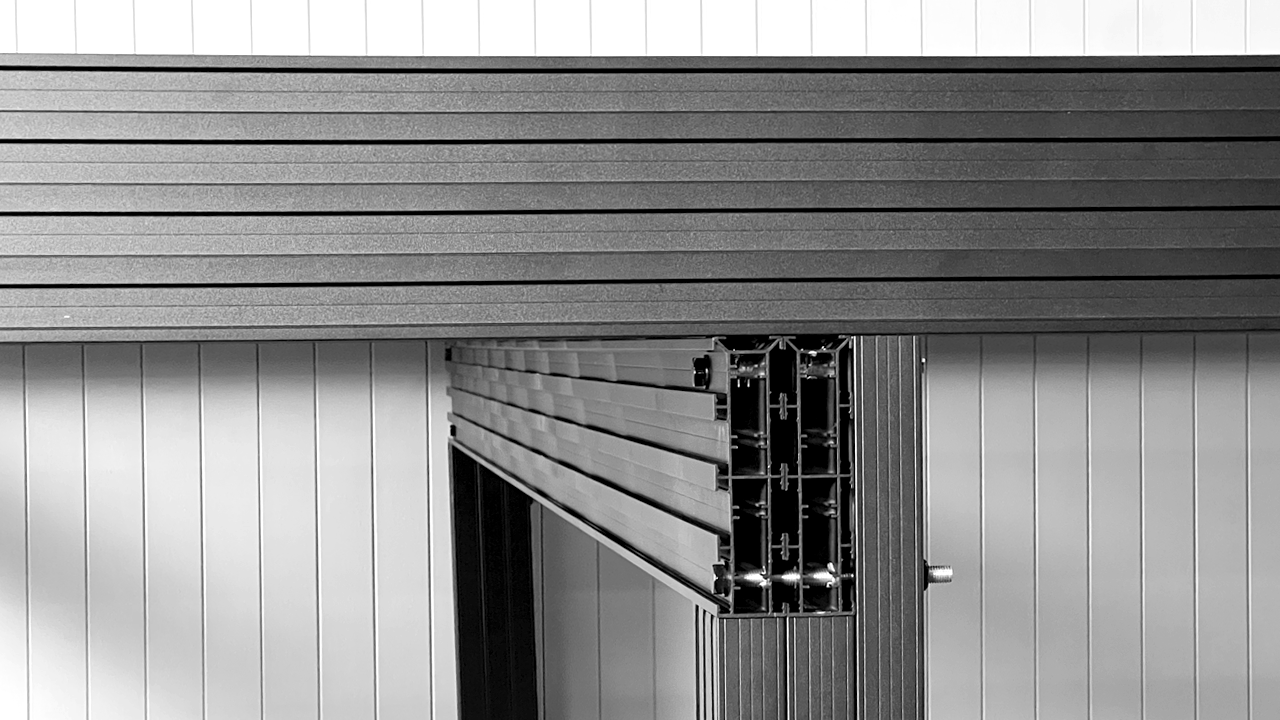

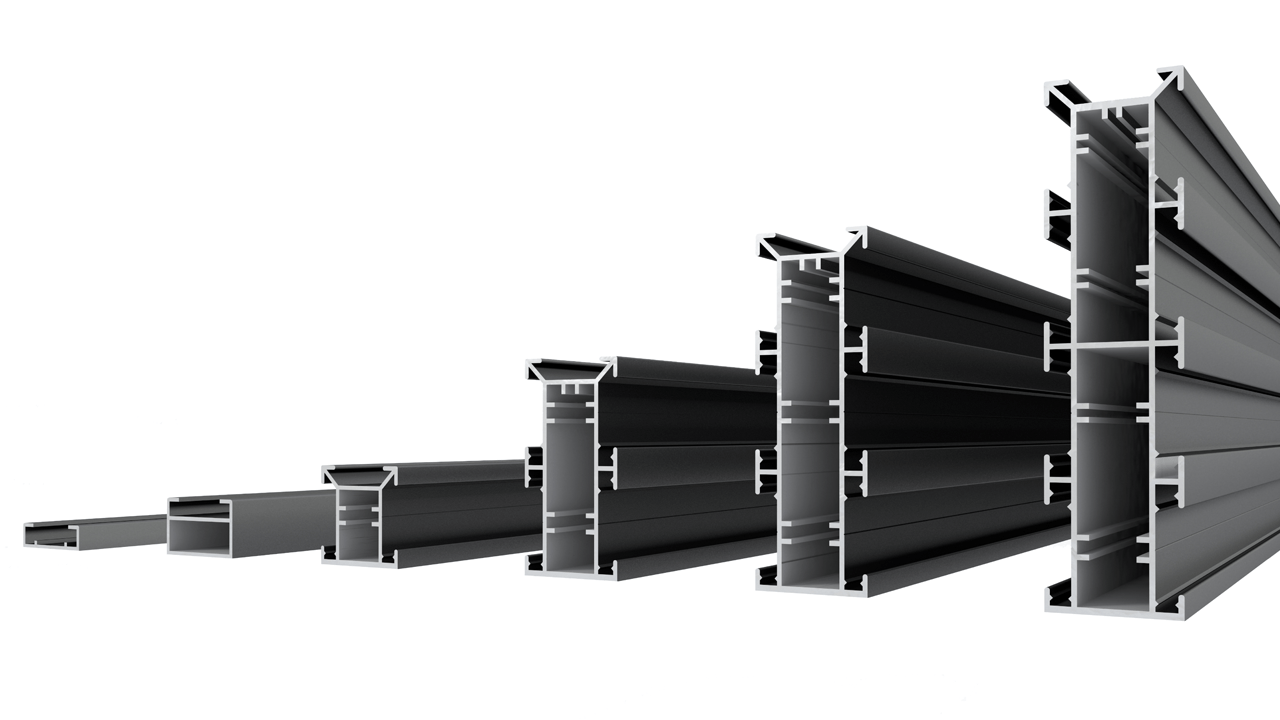

  • 15x aluminium profiles: Marine grade anodising

  • 17x brackets / clips: Ionised powder coated / FRP

  • 7x proprietary screws

  • Qwickgrate ventilation & access grate

  • Range of deck jacks from 3mm – 600mm

    Qwickbuild consists of all proprietary components & screws specifically designed for the system



DESIGN SERVICE:

  • Technical advice and construction detailing

  • Recommendations for di erent applications and installation scenarios

  • Concept design: Board layout and structure design

  • Final design: Detailed structure design and installation details

    customised for each deck

  • Quality specification documents

  • Storyboard installation documents









QWICKBUILD ATTRIBUTES & BENEFITS

    • Fast, e cient installation & assembly

    • Quality & value for money

    • Superior durability & stability

    • Made from premium corrosion-resistant , patented components:

      • -  Family of marine-grade, anondized, structural aluminium frames

      • -  Stainless & GRP nylon accessoriy range

    • QWICKGRATES for ventilation & access

    • Achieve a perfectly level indoor/outdoor flow

    • Ultra low height (73mm total height)

    • Eliminates up to 50% of piles & spans further

    • Council compliant for decks over membranes

    • Enables precise precise finish for complex designs

  • Versatility of applications:

  • Can be constructed simply with a few components

    or as sophisticated as the customer requires

  • Is suitable all decking applications:

    from DIY residential to large commercial projects

  • Can be configured with many joist/bearer/jack/pier

    combinations for any structural requirement

  • Is suitable for creating decking substrates over:

    • -  Concrete, tiles or pavers

    • -  Waterproof membrane

    • -  Soil, grass etc

  • Comprehensive customised design solution for each project
